> Luggage details

Today I refitted the racking, off the bike since the mishap in Spain (read about that debacle here). I used high-tensile stainless fittings and threadlocked everything - how very forward-thinking of me! Results are below. Email with questions, or specific detail requests. These racks were custom made for the bike, and are 80% welded, 20% brazed.

Uploaded 17th March 2004

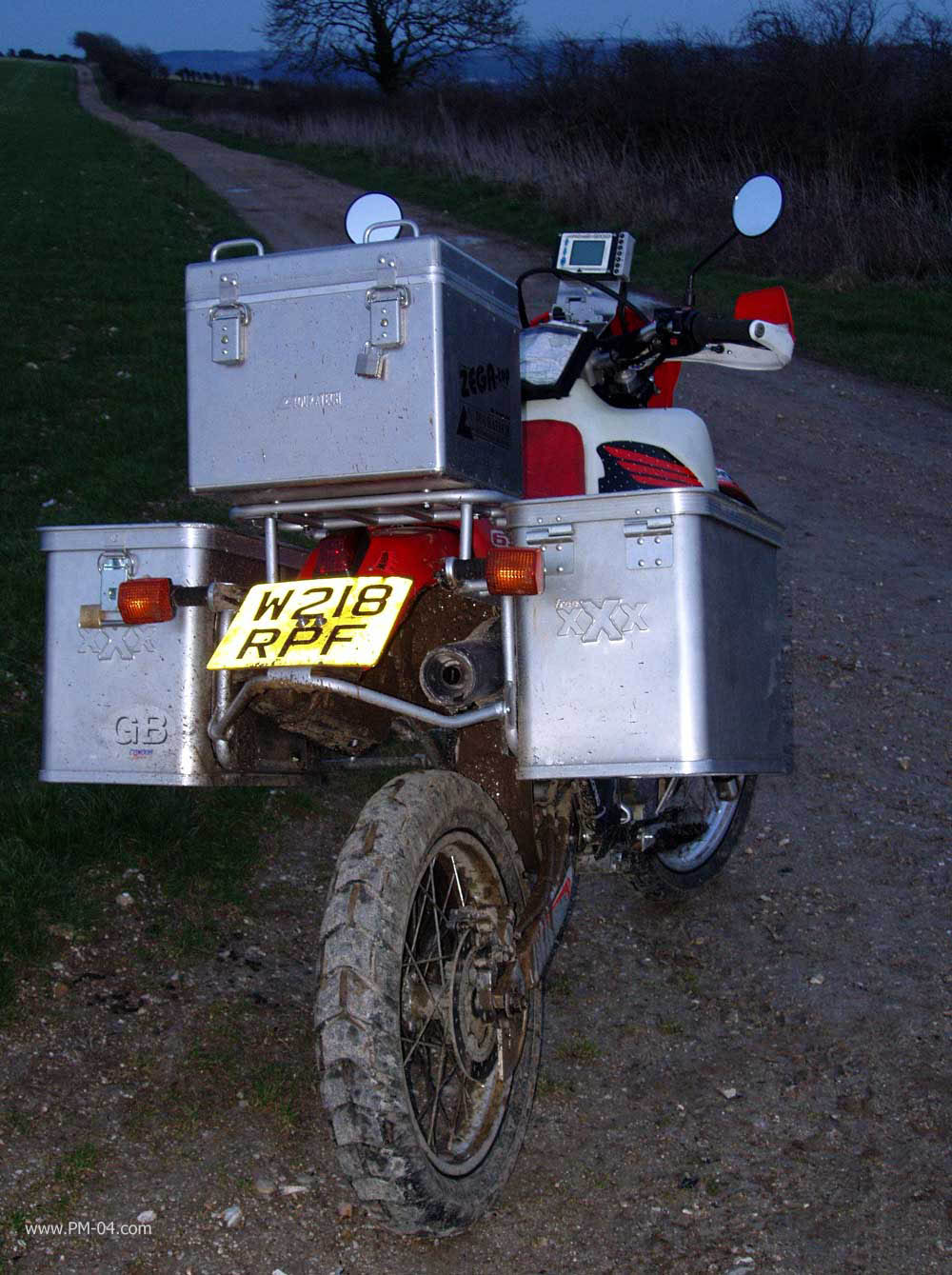

On the driveway

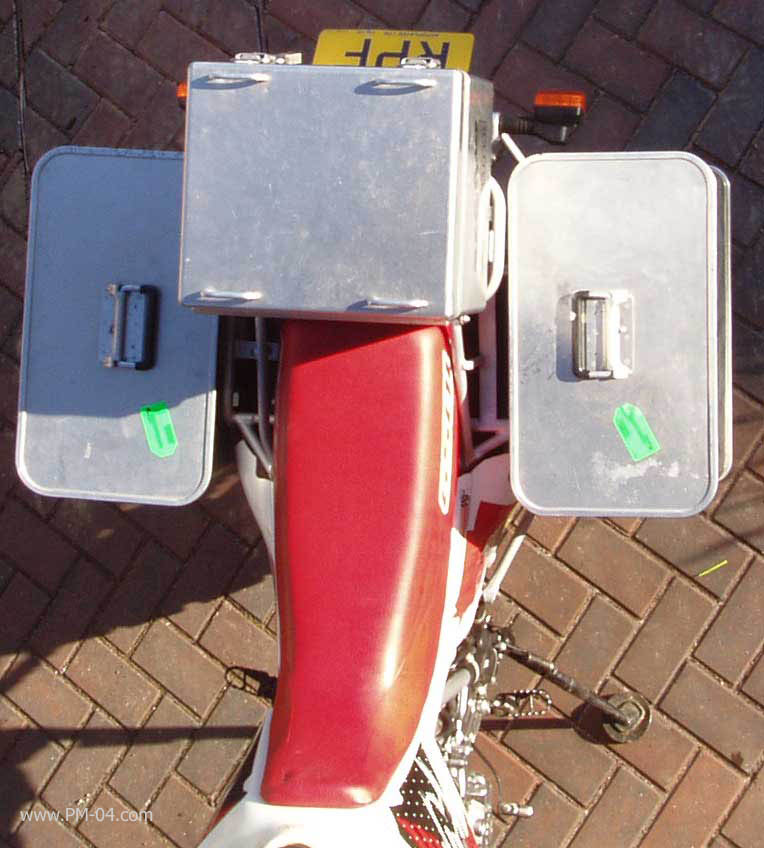

Room for junk behind me

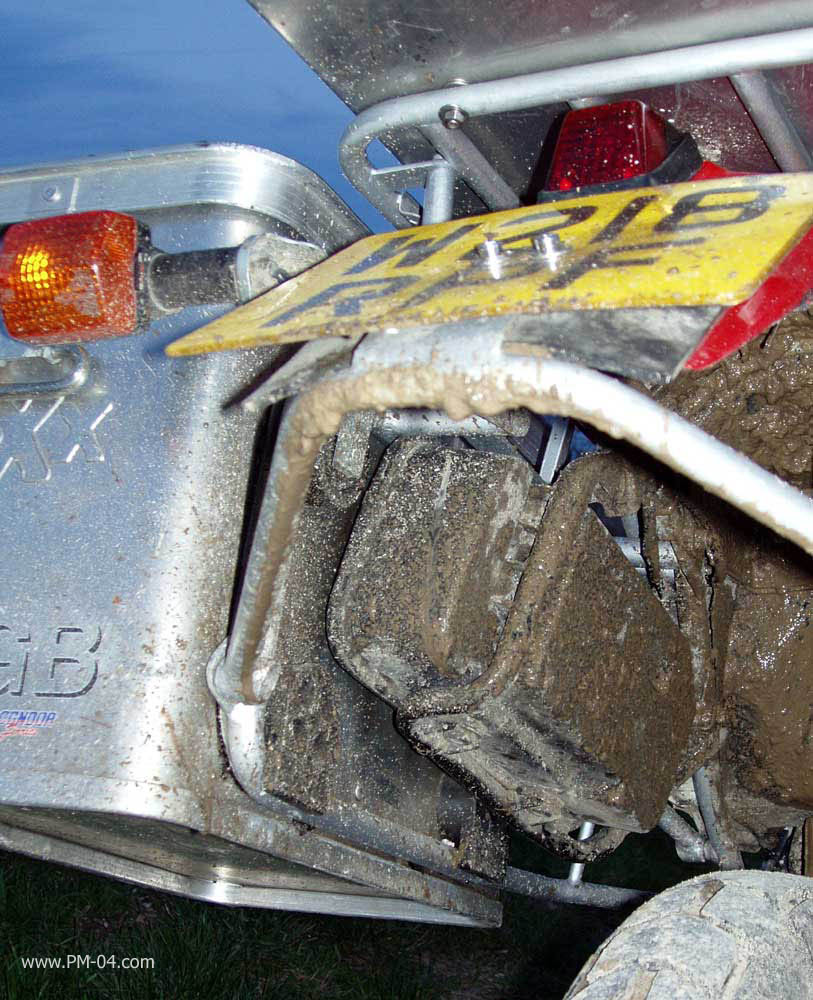

Rear brace & box fixings

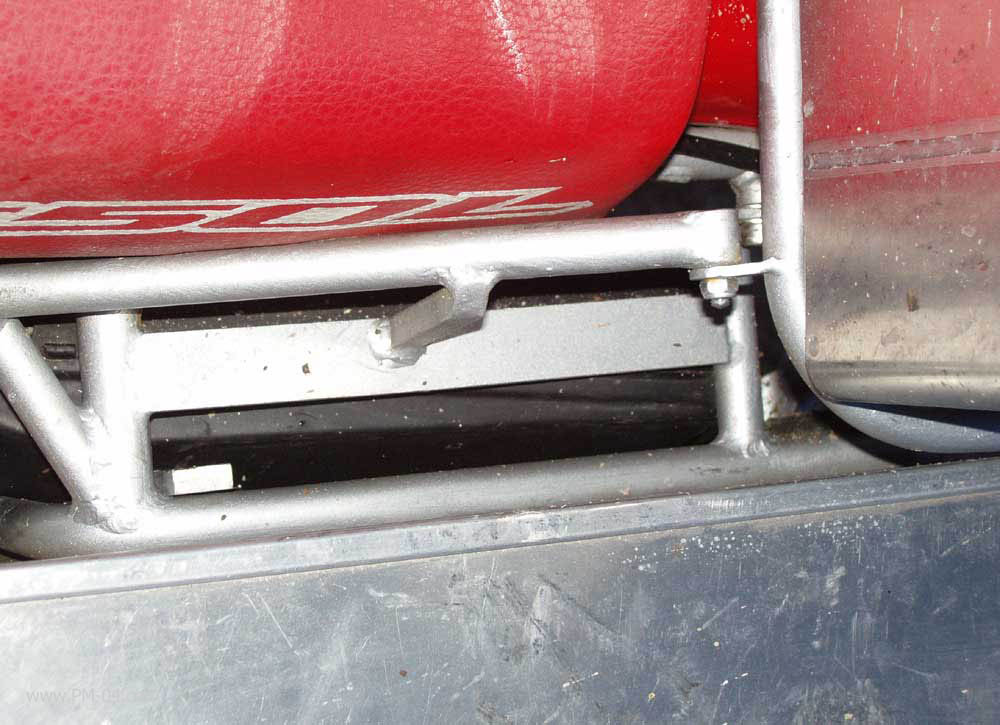

Extra bracing here

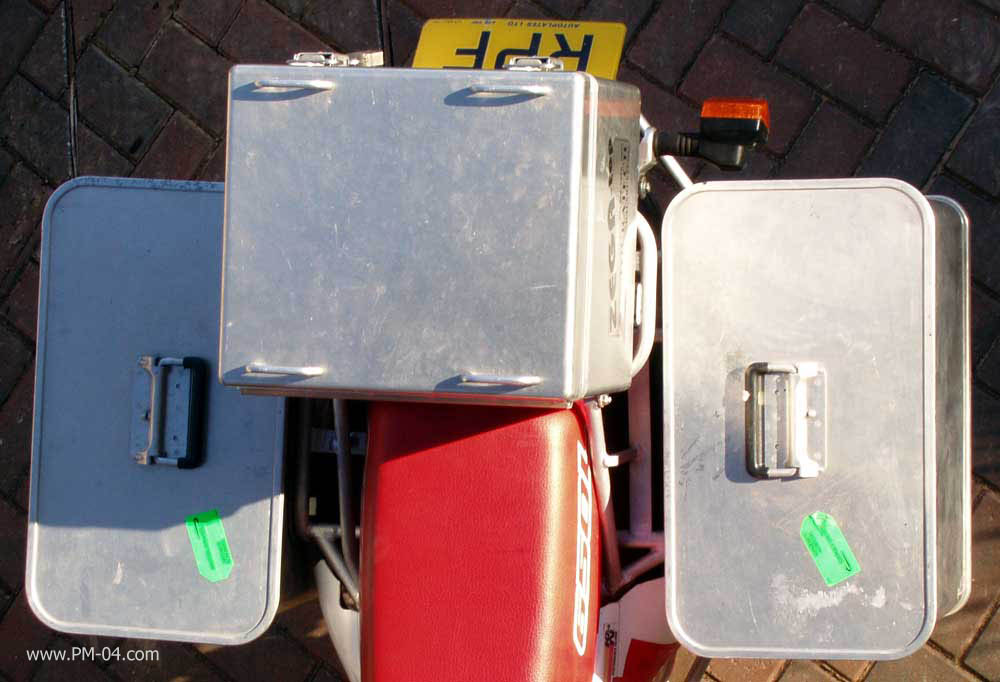

Wide but shallow boxes for ground clearance

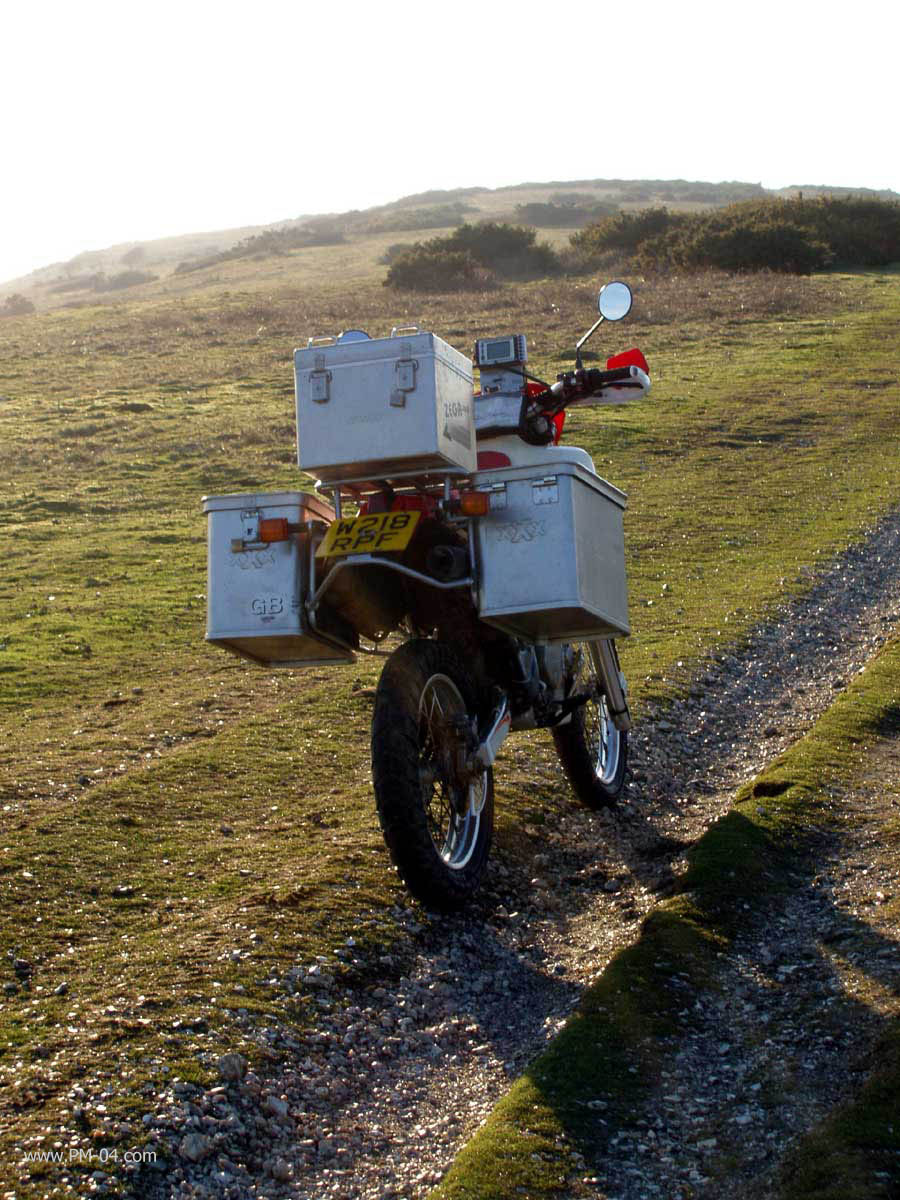

Whole setup works v.well

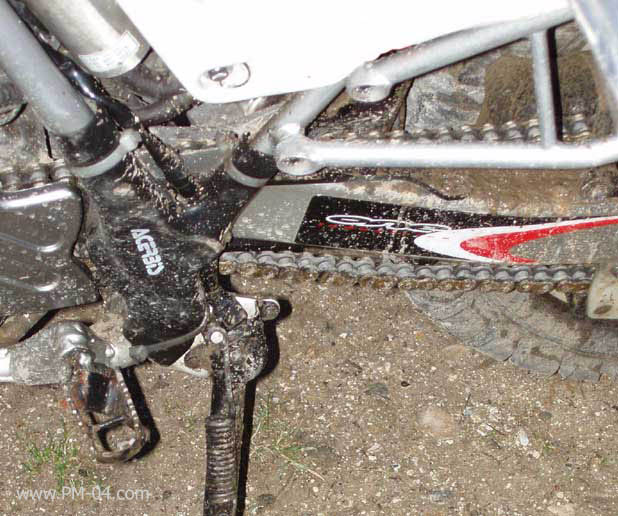

Rack attaches to pillion-peg mount

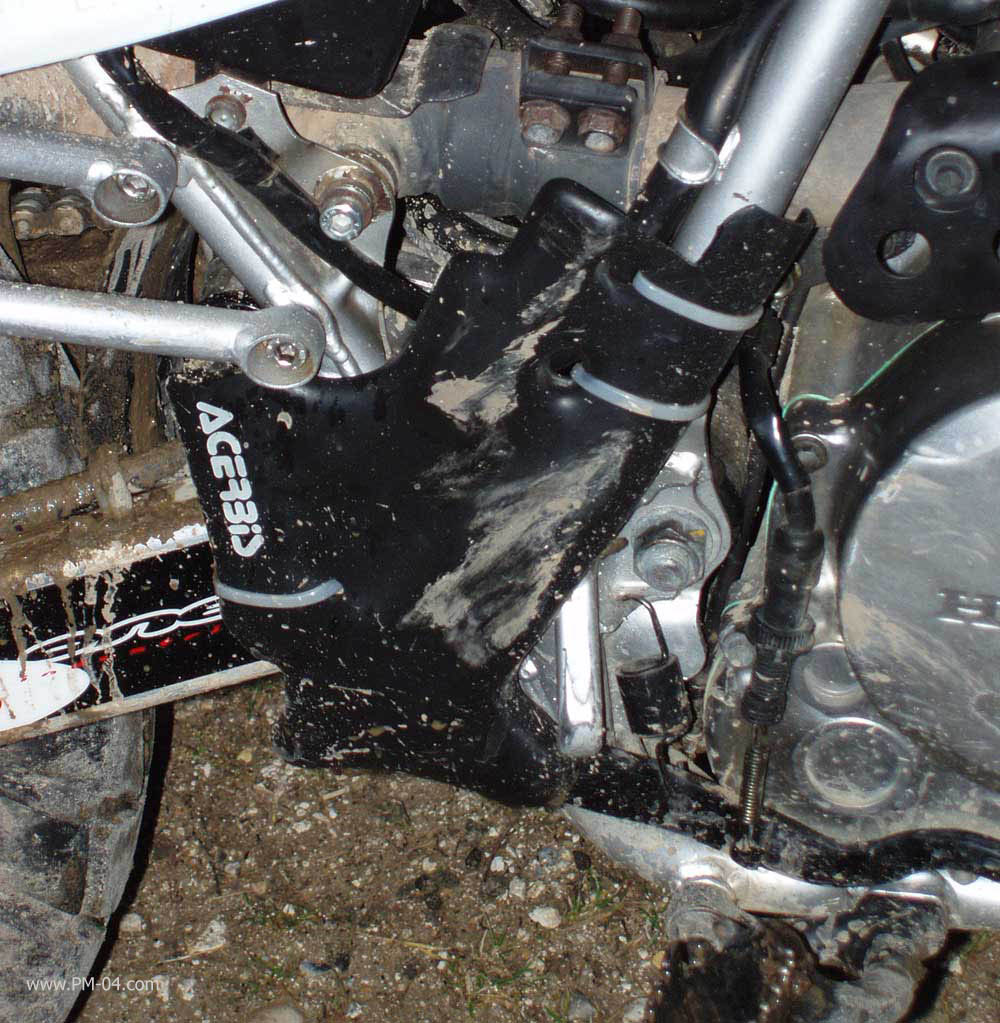

...on both sides - very strong
